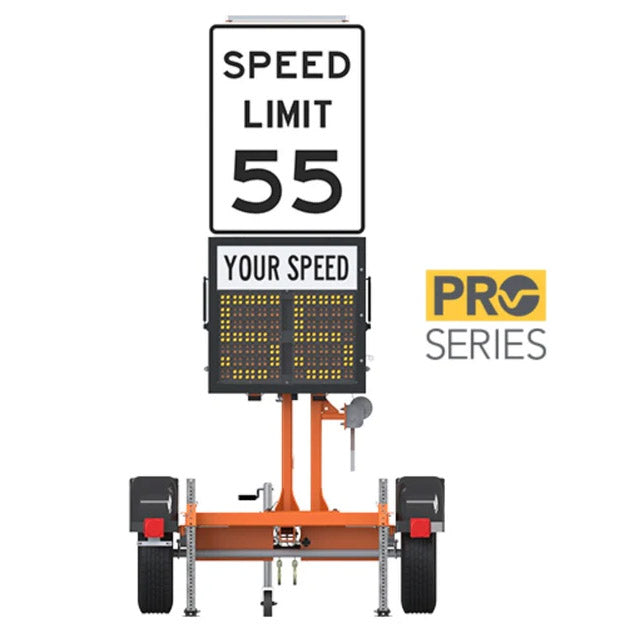

SP-710V PRO Series Speed Sign

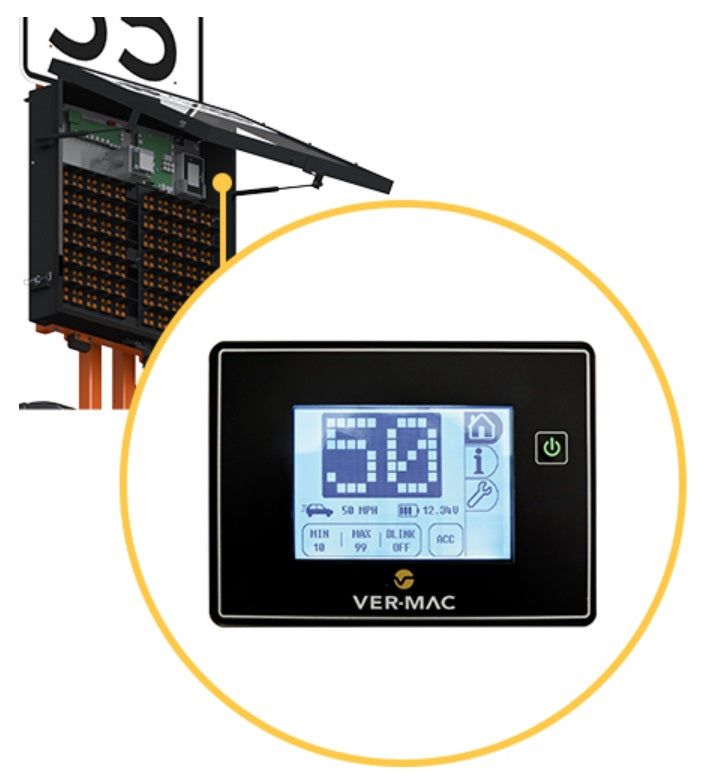

The SP-710V PRO Series is a battery/solar powered trailer-mounted speed sign, with 2-digit display. It features our Stealth Technology, V-Touch SP controller, JamLogic® Fleet Management Software and state-of-the-art doppler radar. The SP-710V PRO Series speed sign is designed to display real-time speed information to the motoring public, reducing speeds and providing a safer environment. The SP-710V PRO Series is perfect to provide speed awareness to highway construction projects, school zones and urban areas.

JAMLOGIC® FLEET MANAGEMENT SOFTWARE (OPTIONAL)

Equip the SP-710V PRO Series with a high speed modem with GPS to monitor and collect data with JamLogic automation. All the data is stored in the JamLogic software. Run your own reports monthly, weekly, daily or custom plus export them to excel. JamLogic allows you to have all the traffic
data at your fingertips.

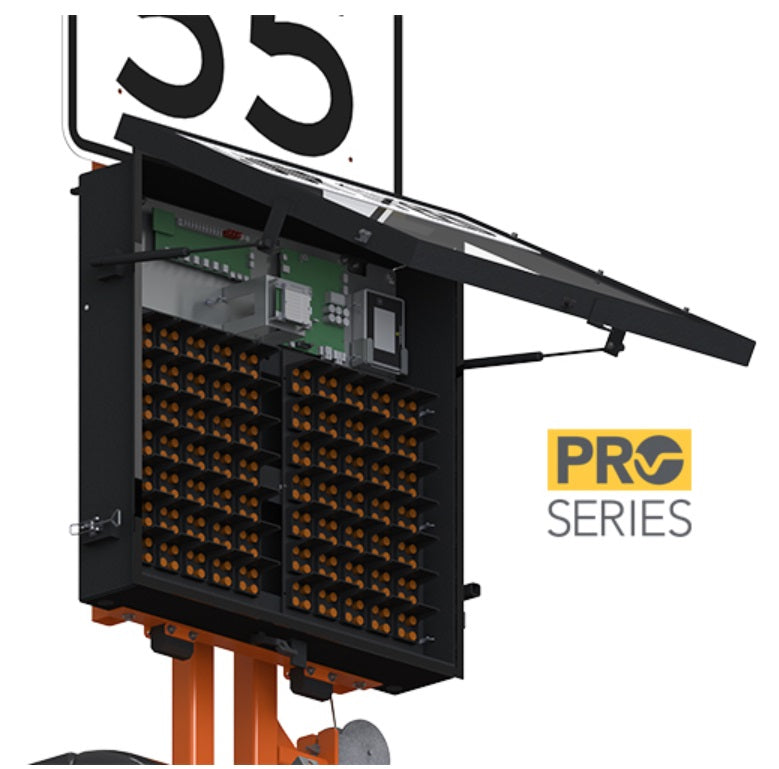

ENERGY-EFFICIENT DESIGN

OPTI POWER LENS – Designed to maximize each LED output and utilize less energy.
SOLAR PANEL – Provides maximum solar recharging during all four seasons.
SOLAR REGULATOR - Protects the batteries from overcharging

*The standard battery/solar configuration is designed to run 12 months in most regions without manual charging.

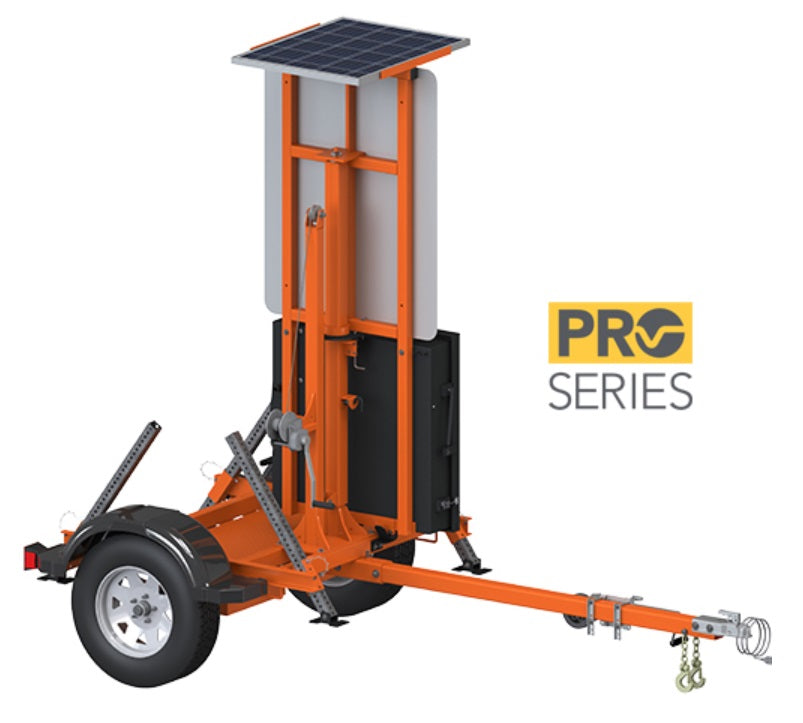

HIGH QUALITY CONSTRUCTION

Powder coating superior finish – impact, humidity, salt spray and rust resistant
4 adjustable stabilizer legs— for trailer stabilization and easy transportation
Tongue wheel jack - for easy and safe trailer set up
Removable tongue - saves space for storage
Rugged rod mast brake - Safely rotate the speed sign to working position (up to 90 degrees)
Manual lift mechanism – for quick deployment
Heavy-duty plastic fenders—for durability and easy replacement
2-in. (51 mm) coupler or 3-in. (76 mm) pintle eye – for easy towing
***MUTCD COMPLIANT SPEED TRAILER***

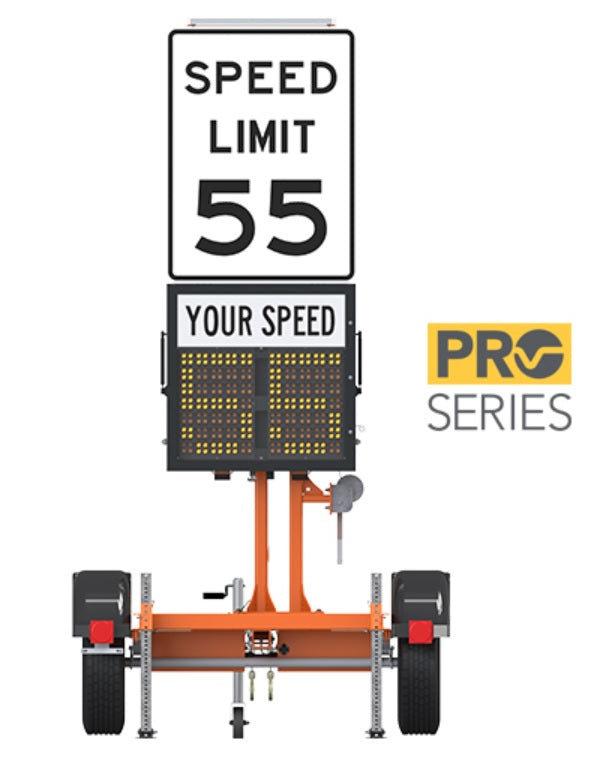

DISPLAY

Speed display panel : 35 x 36 in (885 mm x 914 mm)
Display: 2 digits (mph)
18 in characters—visible up to 305 m (1000 ft)
4 LEDs per pixel
Can accomodate 36 x 48 in. and 30 x 24 in. static signs - not included
Bottom of static sign 7’ above roadway
Plug & play display modules for simplified maintenance

DIMENSIONS

Overall length: 133 in. (3367 mm)
Overall width: 70 in. (1788 mm)
Operating height: 134 in. (3391 mm)
Travelling height: 108 in. (2754 mm)

OPTIONS

Battery charger
Modem with GPS
Data plan (requires modem)
Statistics

*Other options are available to meet your needs
